FlexScan FLT
23.8" Color LCD Monitor
EIZO's most eco-conscious monitor with a typical power consumption of just 6W.

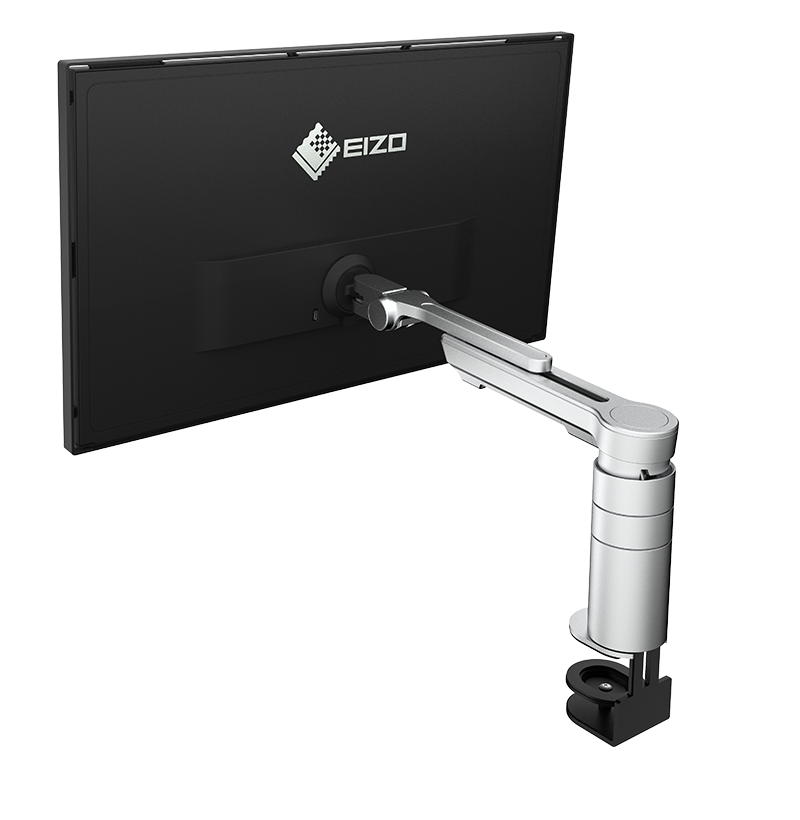

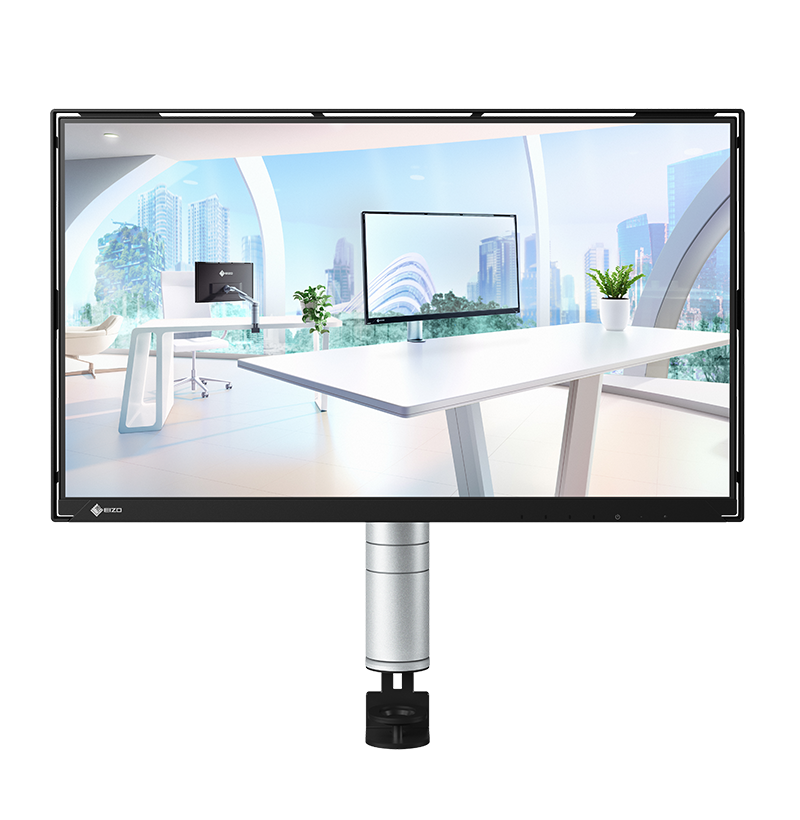

| Model Variations | FLT-BK: with arm, black FLT-FBK: without arm, black Note: Arm is removable |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 23.8" (60.5 cm) |
| Native Resolution | 1920 x 1080 (16:9 aspect ratio) |
| Viewable Image Size (H x V) | 527 x 296.5 mm |
| Pixel Pitch (H x V) | 0.275 x 0.275 mm |
| Pixel Density | 93 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 178° / 178° |
| Brightness (typical) | 250 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 5 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 1.3) |
| Digital Scanning Frequency (H / V) | USB Type-C: 31 - 68 kHz / 59 - 61 Hz |
| USB | |
| Upstream | USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 60 W max.) |
| Downstream | USB 5Gbps: Type-C (Type-C Current, 15 W max.) |
| Audio | |
| Input Terminals | USB Type-C |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 6 W |
| Maximum Power Consumption | 94 W |
| Power Save Mode | 0.27 W |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Eco, Paper, Movie, DICOM |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 550.2 x 398.2 x 359.6 - 439.6 mm (clamp part not included) |
| Dimensions (Without Stand, W x H x D) | 550.2 x 327.8 x 24.4 mm |
| Net Weight | 4.5 kg |
| Net Weight (Without Stand) | 2.4 kg |
| Height Adjustment Range | Refer to the dimension drawing |
| Tilt | Refer to the dimension drawing |
| Swivel | Refer to the dimension drawing |
| Hole Spacing (VESA Standard) | 100 x 100 mm (VESA mounting bracket is needed) |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TCO Certified Generation 10, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE |
| Dedicated Software | |
| Monitor Control Utility Screen InStyle | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | USB Type-C (1.5 m) |
| Others | FLT: AC power cord (2 m), AC adapter, setup guide FLT-F: AC power cord (2 m), AC adapter, VESA mounting bracket, VESA mounting screw x 4, setup guide |
| Warranty | 5 Years Zero bright sub-pixels for six months from date of purchase. |
| Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
- 16 EPEAT registration varies by country. Please check https://www.epeat.net for registration status.
