EV2480
23.8" Color LCD monitor
The New Standard
for a Better Working Experience
The 23.8-Inch EV2480 is a frameless Full HD (1920 x 1080 pixel) monitor equipped with USB Type-C for improving productivity and comfort at the office or at home.

See FlexScan New Standard Monitor Features in Action



Streamlined Connection with USB Type-C

The monitor is equipped with a USB Type-C connection that allows users to display video, playback audio, transmit USB signals, and supply power to connected devices. This convenient multi-purpose connectivity makes it faster and easier to connect a laptop when moving between workstations or when working away from the office.

Streamlined Connection with USB Type-C

Guide to Efficient Telecommuting

Read how an external monitor helps improve efficiency



70 Watt Power Delivery

The 70 watt power delivery via USB Type-C reliably charges small desktop PCs and laptops. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.

70 Watt Power Delivery




Connect Peripherals Directly Into the Monitor

While modern laptops are becoming thinner and more portable, they often have limited connectivity options for peripherals. Connecting to the monitor via USB Type-C gives access to a hub with four USB Type-A ports for easily connecting an external keyboard, mouse, web camera, or storage device.

Connect Peripherals Directly Into the Monitor



USB Type-C Equipped PCs and FlexScan Compatibility [PDF] compatibility.jpg





A Better Working Experience

The monitor offers features and functions that enhance efficiency, productivity, and comfort.

A Better Working Experience

For the Workplace

Versatile Stand for Optimal Positioning

The stand has a wide adjustment range, featuring height adjustment, tilt and swivel. This allows you to set the monitor to the perfect position, whether sitting or standing at your desk.

Versatile Stand for Optimal Positioning

Versatile Stand for Optimal Positioning

For the Home Office

Improve Work Efficiency

At maximum stand height, the user can comfortably place a small laptop under the 23.8-inch screen to save space in even the most limited workspaces. This effectively increases the available screen space by as much as triple, greatly improving efficiency by reducing the need to scroll or switch windows frequently.

Improve Work Efficiency



Connectivity and Flexibility

The monitor is equipped with USB Type-C, DisplayPort, and HDMI® video inputs for flexible connection in different work environments.

Connectivity and Flexibility



Comfortably Fits in Modest Workspaces

The monitor’s width of 537.8 mm and its shallow depth of 230 mm makes it compact enough to fit comfortably in shared workspaces or smaller home offices.


Comfortably Fits in Modest Workspaces



Take Your Settings with You

EIZO's Screen InStyle software's Color Briefcase function allows you to effortlessly maintain your individual screen preferences and take them with you, even to different monitors. This streamlines the setup and connection process for flexible workstyles, as well as enhanced comfort when telecommuting.

 Learn more about Screen InStyle


Take Your Settings with You



Portrait Mode for Vertical Viewing

The versatile stand allows you to rotate the monitor to portrait mode for reading long text documents or vertically optimized webpages and applications.


Portrait Mode for Vertical Viewing

How to Correctly Rotate Your Monitor Vertically






Aesthetically Pleasing Design

A monitor's aesthetic can go a long way in creating a more comfortable atmosphere. The monitor's minimalistic design and its ergonomic functions allow it to fit naturally in your work environment, whether you are at home or in the office.



Aesthetically Pleasing Design

Bezels that are Barely There

The monitor implements a virtually frameless design for a minimalistic aesthetic. There is very little distance between the display area and the bezels, making the monitor easy to blend in with the environment.



Bezels that are Barely There

Color Coordination

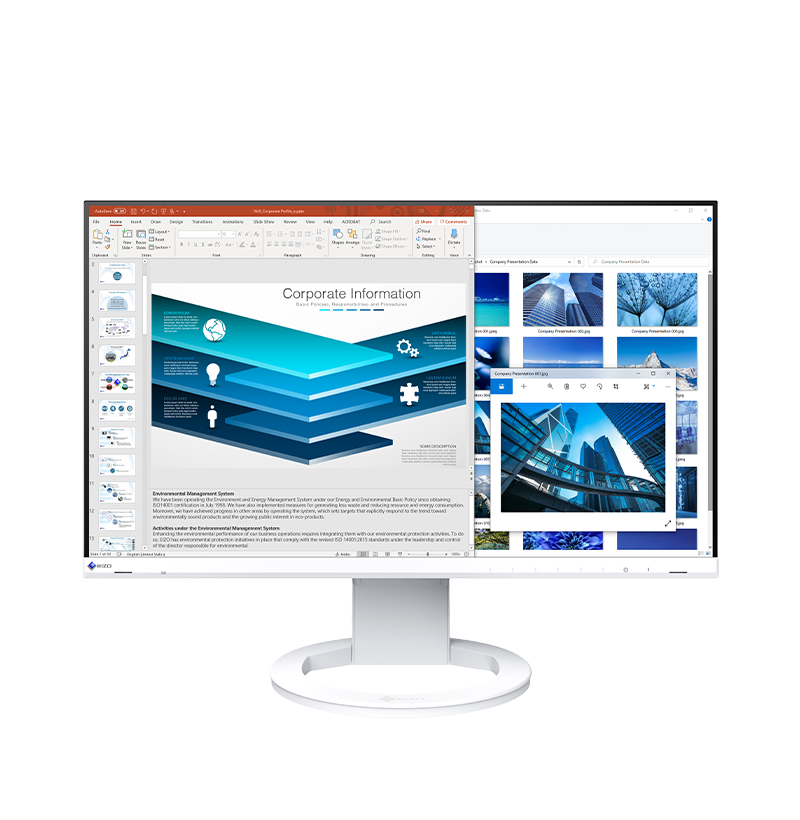

In addition to sleek black, the cabinet is available in white for a color option that keeps your workspace feeling bright. Furthermore, EIZO provides white cables to match the cabinet for full color coordination.



Color Coordination






Scan the code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality.

Supported Models:
iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices
Supported Browsers:
Safari, Chrome
QR Code





Free Up Your Workspace with a Stand Bracket

PCSH-03The PCSK-03 is a VESA-compliant bracket for easily mounting a client terminal such as a thin client or mini PC to the back of the monitor's stand. The space the client terminal previously occupied is now freed up so you can make better use of your desktop. You can adjust the monitor's stand freely even with the client terminal attached.

 Learn more about Stand Bracket



Free Up Your Workspace with a Stand Bracket




Say Goodbye to Tired Eyes

The monitor is equipped with functions to help users concentrate on work by keeping their eyes comfortable throughout the day.

Say Goodbye to Tired Eyes

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.



Auto Brightness Control

Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Clear View from All Angles

Reduce Blue Light by 80%

Printing work-related documents is becoming less common due to the increase in home offices, telecommuting, and stricter security measures. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.


Reduce Blue Light by 80%

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

Flicker-Free Viewing

Minimum Brightness of 1 cd/m2

In a dimly-lit work environment, a monitor with low brightness settings is more comfortable to use. With its LED backlight, the monitor is adjustable to approximately 1 cd/m² which is less than 1% of the maximum.

Minimum Brightness of Approximately 1 cd/m2

Glare Reduction

The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.


Anti-Glare Coating

Certified for Eye Care

FlexScan monitors are certified by TÜV Rheinland to have low blue light and be flicker-free.

Read more about how to combat eye fatigue.




tuvrheinland logo







Commitment to Quality

EIZO manufacturers its products at its own facilities to allow close control over production quality and ensure each monitor is built to last.
Commitment to Quality

5-Year Warranty

FlexScan monitors are backed by a standard 5-year manufacturer's  warranty that covers all components, including the LCD panel*. This extensive warranty period is two years longer than the standard warranty of most conventional monitors. EIZO's 5-year manufacturer's warranty contributes to significantly lower product life cycle costs.
* Usage time is limited to 30,000 hours.





Zero Bright Pixels

EIZO guarantees its FlexScan monitors will be free from bright sub-pixels for six months from the date of purchase.
See our Bright Pixel Policy for details.

Zero bright policy

Exceptional Image Reproduction

The monitor converts the data from an 8-bit input signal and selects the optimal gradations for smooth image display. Furthermore, each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.


Refreshing White with Frameless Design Refreshing White with Frameless Design

Integrated Approach

Each FlexScan monitor is developed, manufactured, and quality-control tested in-house at EIZO's own factory to ensure every product is built to last.
Learn more about how a FlexScan is made.

Auto Brightness Control




Care for the Environment and You

Achieving a sustainable society where we do no harm to the environment nor waste precious resources is an important initiative for businesses and communities. FlexScan Sustainable Monitors are at the forefront of EIZO's efforts to contribute to this sustainable future.

Sustainable Monitor



Reduced Power Consumption

The monitor implements EIZO's proprietary EcoView technologies which cut power consumption up to 50%* compared to displaying at maximum brightness.

*Typical power consumption when not using USB power delivery.

  • Auto EcoView: Automatically adjusts the screen’s brightness according to changes in the ambient lighting.
  • EcoView Optimizer 2: Fine-tunes the balance between brightness and gain according to the content displayed on the screen.

Reduce Power Consumption



Cushioning Environmental Impact

FlexScan Sustainable Monitors are moving away from using plastic and styrofoam in the packaging to reduce environmental impact. The monitors are safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are wrapped in paper instead of plastic bags.


Molded pulp

Cushioning Environmental Impact



Collective Environmental Consciousness

EIZO offers corporate customers a collective packaging option, where four monitors are packaged in a single box and four monitor stands are packaged separately, also in a single box. This reduces the total packaging materials used, improves loading efficiency during shipping, and streamlines unpacking and installation time.

Collective Environmental Consciousness


Certified Sustainable

The monitor is certified by worldwide comprehensive sustainability standards including TCO Certified Generation 9 and EnergyStar. Furthermore, the monitor is registered at EPEAT Gold (highest tier), indicating that it meets the most demanding set of criteria for sustainability, and has attained the new EPEAT Climate+ designation for compliance with climate change standards. Organizations concerned with ESG (environmental, social, and governance) investments or SDGs can assuredly procure the monitor to meet required guidelines.


TCO Certified GenerationEnergyStarEPEAT Climate+ Gold



Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).
SDGs Logo

Environmentally Conscious
FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system.


SDGs 07SDGs 12SDGs 13



Higher Work Efficiency
FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue.


SDGs 08



Choose My Workstyle

Model VariationsEV2480-BK: with FlexStand, black
EV2480-WT: with FlexStand, white
EV2480-FBK: without stand, black
EV2480-FWT: without stand, white

Note: FlexStand is removable
Panel
TypeIPS
BacklightLED
Size23.8" (60.5 cm)
Native Resolution1920 x 1080 (16:9 aspect ratio)
Viewable Image Size (H x V)527 x 296.5 mm
Pixel Pitch (H x V)0.275 x 0.275 mm
Pixel Density93 ppi
Display Colors16.77 million
Viewing Angles (H / V, typical)178° / 178°
Brightness (typical)250 cd/m2
Contrast Ratio (typical)1000:1
Response Time (typical)5 ms (gray-to-gray)
Color Gamut (typical)sRGB
Video Signals
Input TerminalsUSB Type-C (DisplayPort Alt Mode, HDCP 1.3), DisplayPort (HDCP 1.3), HDMI (HDCP 1.4)
Digital Scanning Frequency (H / V)USB Type-C: 31 - 68 kHz / 59 - 61 Hz
DisplayPort: 31 - 68 kHz / 59 - 61 Hz
HDMI: 31 - 68 kHz / 49 - 51 Hz, 59 - 61 Hz
USB
UpstreamUSB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.)
DownstreamUSB 5Gbps: Type-A x 4
Audio
Speakers1.0 W + 1.0 W
Input TerminalsUSB Type-C, DisplayPort, HDMI
Output TerminalsHeadphones (Stereo mini jack)
Power
Power InputAC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption11 W
Maximum Power Consumption142 W
Power Save Mode0.5 W or less
Features & Functions
Preset ModesUser1, User2, sRGB, Paper, Movie, DICOM
Automatic Brightness ControlAuto EcoView
OSD LanguagesEnglish, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D)537.8 x 332.4 - 523.6 x 230 mm
Dimensions (Without Stand, W x H x D)537.8 x 320.4 x 57.4 mm
Net Weight7.4 kg
Net Weight (Without Stand)4.7 kg
Height Adjustment Range191.2 mm
Tilt35° Up, 5° Down
Swivel344°
Pivot90° (both clockwise and counter clockwise)
Hole Spacing (VESA Standard)100 x 100 mm
Environmental Requirements
Operating Temperature5 - 35°C
Operating Humidity (R.H., non condensing)20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.)TCO Certified Generation 9, EPEAT Gold with Climate+, TUV/Ergonomics, TUV/Low blue light content, TUV/Flicker Free, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC
Dedicated Software
Monitor Control Utility Screen InStyleSupported
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal CablesUSB Type-C (2 m)
OthersAC power cord (2 m), setup guide
Warranty5 Years
Zero bright sub-pixels for six months from date of purchase.
Dimension DrawingPDF



Brochures

FlexScan Series 2024
10.1 MB











Software

Screen InStyle (Windows)

- Monitor control utility
- Multi-monitor power management
- Blue light reduction

Screen InStyle Server

- Asset management and monitor control software
- Automatic acquisition of monitor and PC device information
- Collective adjustment of monitor color and power settings
