S2134

21.3" Color LCD Monitor

This 21.3-inch square monitor with 1600 x 1200 resolution features wide viewing angles and anti-glare for clear display. A 5-year warranty and long-term supply ensures it can be used in back offices and control rooms reliably throughout the long life of the system or application.

Digital and Analog Input Terminals

In addition to DisplayPort and DVI-D for digital input terminals, the monitor has a D-Sub mini 15-pin input terminal for analogue signals.

Three Input Terminals

Long-Term Supply

The S2134 is the successor to the S2133. This family of 21.3-inch monitors feature consistent housing and interfaces across each model. This ensures customers can rely on the lineup to suit their installation needs over the long life of their local systems.

Automatic Image Adjustment

The Self Adjustment function automatically adjusts the screen to suppress flicker and drift for analogue input signals. Furthermore, the signal cables bundled with the monitor are developed to minimize noise.

Automatic Image Adjustment

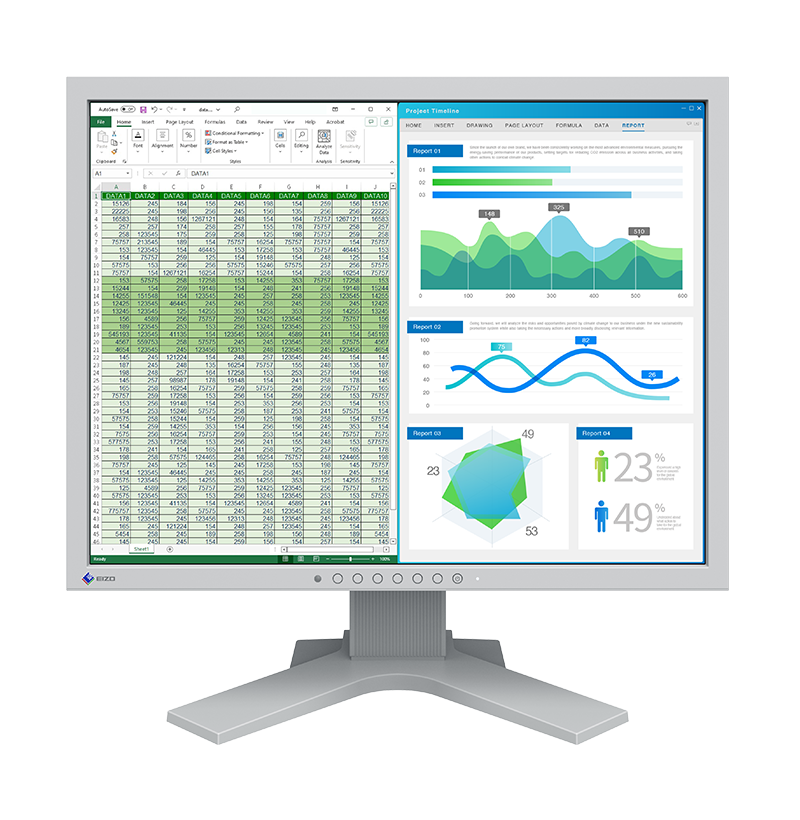

Square Format with Ample Space

With a 21.3-inch screen and a 1600 x 1200 native resolution, the monitor comfortably displays information that requires less scrolling for more efficient viewing.

Square Format with Ample Space

Good Visibility in Bright Places

With a maximum brightness of 500 cd/m² and a contrast ratio of 1800:1, the screen remains visible under daylight conditions and in brightly lit rooms.

Exceptional Image Reproduction

The monitor converts the data from an 8-bit input signal and selects the optimal gradations for smooth image display. Furthermore, each monitor is individually measured and adjusted at the factory prior to shipping for exceptional image quality out of the box.

Auto Brightness Control

To prevent eye fatigue, a brightness sensor called Auto EcoView detects the changes in the ambient brightness that occurs throughout the day and automatically adjusts the screen to the ideal brightness level.

Auto Brightness Control

Clear View from All Angles

The monitor uses an LED-backlit IPS (in-plane switching) LCD panel with 178° viewing angle that minimizes color shift and contrast changes when viewing the screen at an angle. This means that two people sitting at the one computer can easily see the screen with high image quality.

Reduce Blue Light by 80%

The monitor is equipped with Paper Mode which simulates the look of printed paper. Paper Mode reduces the amount of blue light emitted by the monitor, helping to prevent eye fatigue when reading digital documents. When used in conjunction with the Auto EcoView dimming function, blue light is reduced by as much as 80%.

Reduce Blue Light by 80%

Flicker-Free Viewing

Due to the way brightness is controlled on LED backlights, a small number of people perceive flicker on their screen which causes eye fatigue. The monitor utilizes a hybrid solution to regulate brightness and make flicker unperceivable without any drawbacks like compromising color stability – even on low brightness settings.

Glare Reduction

The panel is treated with an anti-glare coating to reduce screen reflections caused by ambient lightning. This makes the screen easier to see and helps reduce eye fatigue.

Glare Reduction

Viewing Comfort with an Ergonomic Stand

The stand has a wide adjustment range, featuring height adjustment, tilt, swivel, and rotation for portrait mode. This allows you to set the monitor to the perfect position, whether sitting or standing at your desk.

Model Variation

The monitor comes either with or without a stand to provide different mounting options. The monitor also complies with VESA mounting standards for flexible installation.

Compliance with International Labels

Meets the most stringent international labels for ergonomics and energy savings.

Built to Last Five Years

EIZO’s five-year warranty is two years, or 67%, longer than the standard three-year warranty of most brands. This contributes to a lower TCO (total cost of ownership) due to a longer purchase cycle and less need for repairs.

Our Contribution to SDGs

As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs).

Environmentally Conscious FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system. Learn more

Higher Work Efficiency FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue. Learn more

Model Variations	S2134-HBK: with Height Adjustable Stand, black S2134-HGY: with Height Adjustable Stand, gray S2134-FBK: without stand, black S2134-FGY: without stand, gray Note: Height Adjustable Stand is removable
Panel
Type	IPS
Backlight	LED
Size	21.3" (54.0 cm)
Native Resolution	1600 x 1200 (4:3 aspect ratio)
Viewable Image Size (H x V)	432 x 324 mm
Pixel Pitch (H x V)	0.270 x 0.270 mm
Pixel Density	94 ppi
Display Colors	16.77 million
Viewing Angles (H / V, typical)	178° / 178°
Brightness (typical)	500 cd/m²
Contrast Ratio (typical)	1800:1
Response Time (typical)	6 ms (gray-to-gray)
Color Gamut (typical)	sRGB
Video Signals
Input Terminals	DisplayPort (HDCP 1.3), DVI-D (HDCP 1.4), D-Sub mini 15 pin
Digital Scanning Frequency (H / V)	31 - 76 kHz / 59 - 61 Hz
Analog Scanning Frequency (H / V)	24 - 80 kHz / 49 - 76 Hz (1600 x 1200: 59 - 61 Hz)
Sync Formats	Separate
USB
Upstream	USB 2.0: Type-B
Downstream	USB 2.0: Type-A x 2
Power
Power Input	AC 100 - 240 V, 50 / 60 Hz
Typical Power Consumption	13 W
Maximum Power Consumption	42 W
Power Save Mode	0.5 W or less
Features & Functions
Preset Modes	User1, User2, sRGB, Paper, Movie, DICOM
Automatic Brightness Control	Auto EcoView
OSD Languages	English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese
Physical Specifications
Dimensions (Landscape, W x H x D)	465 x 453 - 535 x 208.5 mm
Dimensions (Without Stand, W x H x D)	465 x 361 x 64 mm
Net Weight	8.1 kg
Net Weight (Without Stand)	5.1 kg
Height Adjustment Range	82 mm
Tilt	40° Up, 0° Down
Swivel	35° Right / 35° Left
Pivot	90° (clockwise)
Hole Spacing (VESA Standard)	100 x 100 mm
Environmental Requirements
Operating Temperature	5 - 35°C
Operating Humidity (R.H., non condensing)	20 - 80%
Certifications & Standards (Please contact EIZO for the latest information.)	TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, EPA ENERGY STAR, RoHS, WEEE, China RoHS, CCC, EAC
Supplied Accessories (May vary by country. Please contact EIZO for details.)
Signal Cables	DVI-D (2 m) , D-Sub mini 15 pin (1.8 m)
Others	AC power cord (2 m), USB Type-A - USB Type-B cable (1.8 m), setup guide
Warranty	5 Years
Dimension Drawing	PDF
