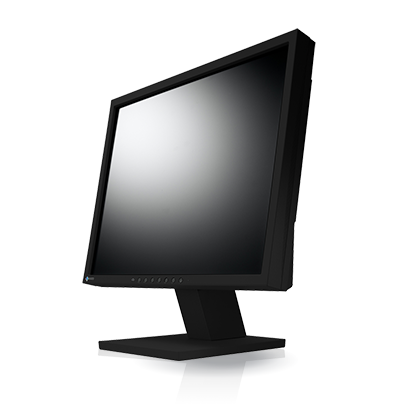

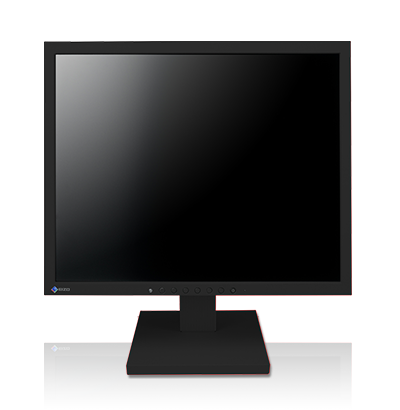

S1703-A
17.0" Color LCD Monitor
17-Inch Square Monitor with 5-Year Warranty and Long-Term Supply
With both DVI-D and D-Sub mini 15-pin inputs, you can use a computer that has either a digital or an analog graphics board (or both if connected to two computers), and quickly switch between the inputs via a front panel button.
The S1703-A comes with a 5 year warranty*. Even if the initial purchase price of the FlexScan S1703-A is higher than another 17-inch monitor, the TCO (total cost of ownership) will likely be lower due to the significantly longer buying cycle and less need for repair.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). | |
 |
| Environmentally Conscious FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system. |
|
   |
| |
|
|
| Higher Work Efficiency FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue. |
|
 |
| Model Variations | S1703-AHBK: with Height Adjustable Stand, black S1703-AHGY: with Height Adjustable Stand, gray S1703-ATBK: with Tilt Stand, black S1703-ATGY: with Tilt Stand, gray S1703-AFBK: without stand, black S1703-AFGY: without stand, gray Note: Stand is removable |
|---|---|
| Panel | |
| Type | TN |
| Backlight | LED |
| Size | 17.0" (43.3 cm) |
| Native Resolution | 1280 x 1024 (5:4 aspect ratio) |
| Viewable Image Size (H x V) | 337.9 x 270.3 mm |
| Pixel Pitch (H x V) | 0.264 x 0.264 mm |
| Pixel Density | 96 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 170° / 160° |
| Brightness (typical) | 250 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 5 ms (black-white-black) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | DVI-D (HDCP 1.4), D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 64 kHz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 64 kHz / 55 - 61 Hz |
| Sync Formats | Separate |
| Audio | |
| Speakers | 0.5 W + 0.5 W |
| Input Terminals | Stereo mini jack |
| Output Terminals | Headphones (Stereo mini jack) |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 8 W |
| Maximum Power Consumption | 18 W |
| Power Save Mode | 0.5 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Paper |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others | Analog Adjustment (Clock, Phase, Position, Auto Range, Color Adjustment (Brightness, Contrast, Temperature, Gain, Reset), Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Rotation, Key Lock, Reset |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | S1703-AH: 367 x 391.5 - 491.5 x 205 mm S1703-AT: 367 x 384 x 188 mm |
| Dimensions (Without Stand, W x H x D) | 367 x 304 x 59 mm |
| Net Weight | S1703-AH: 5.4 kg S1703-AT: 4.4 kg |
| Net Weight (Without Stand) | 3.6 kg |
| Height Adjustment Range | S1703-AH: 100 mm S1703-AT: - |
| Tilt | S1703-AH: 30° Up, 0° Down S1703-AT: 30° Up, 5° Down |
| Swivel | S1703-AH: 35° Right / 35° Left S1703-AT: - |
| Pivot | S1703-AH: 90° (clockwise) S1703-AT: - |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, RoHS, WEEE, China RoHS, CCC, EAC |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DVI-D (2 m) , D-Sub mini 15 pin (1.8 m) |
| Others | AC power cord (2 m), audio cable (2.1 m), VESA mounting screw x 4, setup guide |
| Warranty | 5 Years |
| Dimension Drawing |
