S1503-A
15.0" Color LCD Monitor
A brightness sensor, LED backlight, and built-in speakers, make this a practical choice for back office and administrative environments.
The Auto EcoView function is a sensor on the front of the monitor that measures ambient light and optimizes the screen's brightness. Since the screen is never too bright, eye strain is reduced while power consumption is cut by up to 50% compared to operating the monitor with Auto EcoView turned off and set to the default factory brightness of 100%.
With both DVI-D and D-Sub mini 15-pin inputs, you can use a computer that has either a digital or an analog graphics board (or both if connected to two computers), and quickly switch between the inputs via a front panel button.
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). | |
 |
| Environmentally Conscious FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system. |
|
   |
| |
|
|
| Higher Work Efficiency FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue. |
|
 |

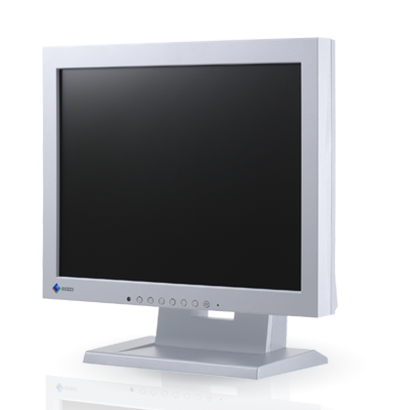

| Model Variations | S1503-ATBK: with Tilt Stand, black S1503-ATGY: with Tilt Stand, gray S1503-AFBK: without stand, black S1503-AFGY: without stand, gray Note: Tilt Stand is removable |
|---|---|
| Panel | |
| Type | TN |
| Backlight | LED |
| Size | 15.0" (38.0 cm) |
| Native Resolution | 1024 x 768 (4:3 aspect ratio) |
| Viewable Image Size (H x V) | 304.1 x 228.1 mm |
| Pixel Pitch (H x V) | 0.297 x 0.297 mm |
| Pixel Density | 86 ppi |
| Display Colors | 16.77 million |
| Viewing Angles (H / V, typical) | 160° / 160° |
| Brightness (typical) | 400 cd/m2 |
| Contrast Ratio (typical) | 600:1 |
| Response Time (typical) | 8 ms (black-white-black) |
| Color Gamut (typical) | sRGB |
| Video Signals | |
| Input Terminals | DVI-D, D-Sub mini 15 pin |
| Digital Scanning Frequency (H / V) | 31 - 49 Hz / 59 - 61 Hz |
| Analog Scanning Frequency (H / V) | 31 - 49 kHz / 55 - 61 kHz |
| Sync Formats | Separate |
| Audio | |
| Speakers | 0.5 W + 0.5 W |
| Input Terminals | Stereo mini jack |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 5 W |
| Maximum Power Consumption | 16 W |
| Power Save Mode | 0.5 W or less |
| Features & Functions | |
| Preset Modes | User1, User2, sRGB, Paper |
| Automatic Brightness Control | Auto EcoView |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others | Screen Adjustment (Clock, Phase, Position, Range (Auto)), Smoothing (5 stages), Color Adjustment (Brightness, Contrast, Temperature, Gain, Reset), Signal Switching, Power Indicator, Product Information (name, serial number, resolution, operating time, etc.), OSD Menu Position, Adjustment Lock, Reset, DDC/CI Lock |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 346 x 349 x 157 mm |
| Dimensions (Without Stand, W x H x D) | 346 x 280 x 69 mm |
| Net Weight | 4.7 kg |
| Net Weight (Without Stand) | 3.4 kg |
| Tilt | 30° Up, 0° Down |
| Hole Spacing (VESA Standard) | 100 x 100 mm, 75 x 75 mm |
| Environmental Requirements | |
| Operating Temperature | 5 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, VCCI-B, RoHS, WEEE, China RoHS, CCC, EAC |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | DVI-D (2 m) , D-Sub mini 15 pin (1.8 m) |
| Others | AC power cord (2 m), audio cable (2.1 m), VESA mounting screw x 4 (S1503-AF), setup guide |
| Warranty | 5 Years |
| Dimension Drawing |
- 2 With current LCD / OLED technology, a panel may contain a limited number of missing or flickering pixels.
- 5 If the monitor is left on continuously over a long period of time, dark smudges or burn-in may appear. To maximize the life of the monitor, we recommend the monitor be turned off periodically.
