Streamlined Connection
Single Cable Connection with USB Type-C
The ColorEdge CS2400R features USB Type-C connectivity that allows you to display video, transmit USB signals, and supply power to a connected device such as a tablet or notebook PC. This convenient multi-purpose connectivity makes it faster and easier to connect when moving between creative work areas or when working remotely or in a home studio.
70 W Power Delivery
The USB Type-C terminal reliably charges a connected tablet or laptop with 70 W power delivery. This eliminates the need for a laptop's bulky power supply unit, freeing up space in your bag and on the desk.
Apple M1/M2 series Chip Equipped Mac Computer and Monitor Compatibility
Reliable Color Management
ColorNavigator 7 Color Management Software
|

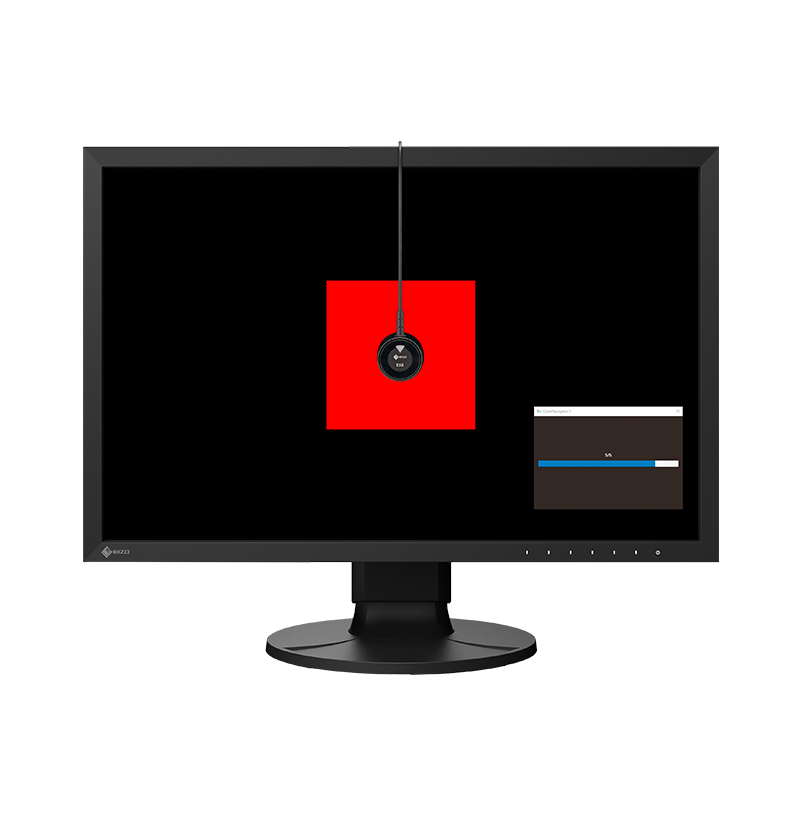

A monitor needs to be calibrated at regular intervals to maintain color accuracy. EIZO's proprietary ColorNavigator 7 software provides an intuitive and highly precise solution to color management. It allows you to calibrate all color modes simultaneously and supports a wide range of external sensors. Calibration information is saved to the monitor instead of the operating system so you do not have to recalibrate even when using a different PC. |
|
Quick Color Match Software
|
Even with all the right equipment, color matching can be a tedious process - from monitor adjustment to determining the best retouch software and printer settings - achieving an accurate print takes a great deal of time. Quick Color Match greatly simplifies the process by automatically adjusting to the ideal monitor, retouching software, and printer settings so you can focus on editing your photos and print your work quickly and hassle-free. Simply drag and drop your photo in the Quick Color Match window to automatically start the process. |
|
Color Precision
100% sRGB CoverageThe monitor covers 100% of the sRGB color space, making it ideal for working with web images or other digital media. |
|
10-Bit Simultaneous DisplayUsing the DisplayPortTM or HDMI® inputs, the monitor offers 10-bit simultaneous display* from a 16-bit look-up-table (LUT) which means it can show more than one billion colors simultaneously. This is 64 times more colors than you get with 8-bit display, resulting in smooth color gradations and reduced Delta-E between two adjacent colors. |
|
Stable Image Display
Adjusted at the Factory for Smooth Color Gradations
The gamma level for each ColorEdge monitor is adjusted at the factory by measuring the R, G, and B gamma values from 0 - 255, then using the monitor's 16-bit look-up-table (LUT) to select the 256 most appropriate tones and achieve the desired value. This ensures the smoothest color gradations in your images.
Uniformity Across the Screen
LCD monitors commonly exhibit fluctuations in brightness and chromaticity across the screen, affecting color accuracy. To counter this, ColorEdge monitors are equipped with EIZO's patented digital uniformity equalizer (DUE) technology which corrects deviations in every tone across the screen to ensure stable display.
Verified Accuracy with Factory Report
Included in the box of every ColorEdge CS2400R is a Factory Report which shows the measurement results of the monitor at the time of production. The report includes uniformity, gamma, gamut coverage, and color temperature measurements which verify every unit's accuracy.
Learn more about the Factory Report
Design and Comfort
Sleek Cabinet Design

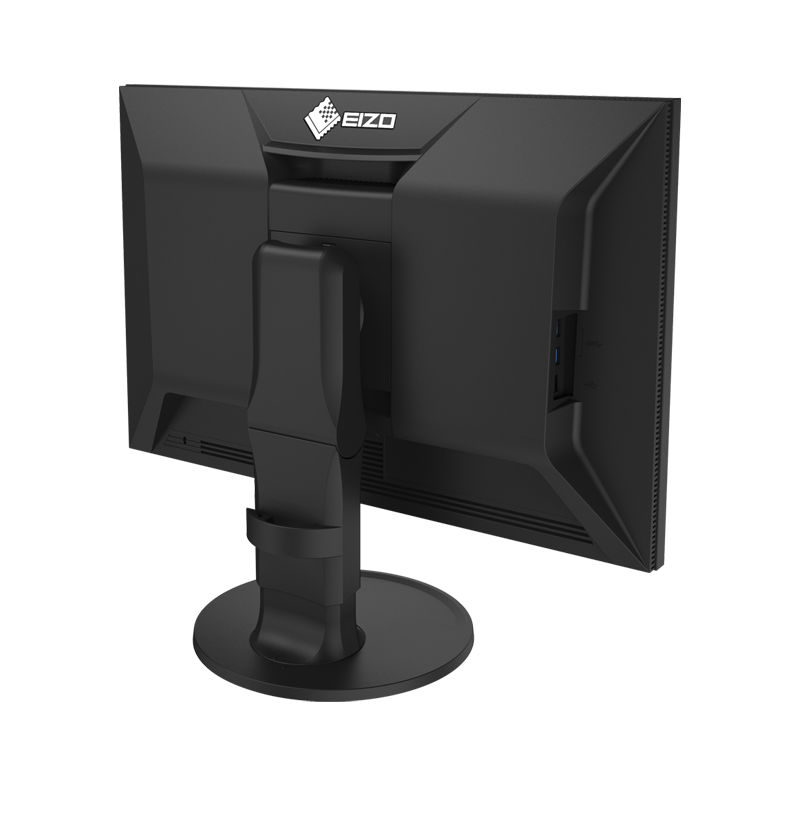

The outer design features a sleek cabinet with rounded edges and a non-intrusive stand base to allow the monitor to fit comfortably in any creative environment. A carrying handle on the back allows you to easily move it to other locations. USB ports are easily accessible from the side for connecting USB devices.
-
Scan the code using your smartphone or tablet
to see how EIZO fits into your environment with augmented reality. - Supported Models:
- iPhone 6s or later, iPad (5th generation or later)
ARCore supported Android devices - Supported Browsers:
- Safari, Chrome
-
Optional Light-Shielding HoodAn optional light-shielding hood is available that effectively prevents glare on the monitor's screen caused by ambient lighting. The hood attaches to the monitor magnetically, allowing users to setup quickly and easily without needing to connect separate parts. |
|
Ergonomic Stand
Adjust the screen to the most comfortable angle and reposition it to show your work to others. The monitor comes with a versatile stand that offers height, tilt, and swivel adjustments. The stand is also equipped with a quick release that allows you to easily remove the screen from the stand with a single touch.
Sustainable Future
Cushioning Environmental Impact
| The CS2400R joins other EIZO products in the transition away from using plastic and styrofoam in the monitor's packaging to reduce environmental impact. The monitor is safely packed using molded pulp, which is made from recycled cardboard and newspaper, and cables are contained in a cardboard structure instead of wrapped in plastic bags. | |
 |
Our Contribution to SDGs
| As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). | |
 |
| Higher Work Efficiency ColorEdge hardware and software solutions provide high-precision color management to photographers, designers, post production studios, printers, and more. Implementing color management in the workflow ensures the same color information is shared throughout each step of the creative process, streamlining communication between artists and teams, and reducing costly rework. |
|
 |
| |
|
|
| Environmentally Conscious Our products for creative work are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, while maintaining the high performance and functionality needed for creators in every industry. We also implement a responsible after-service recycling system. |
|
  |
| Model Variations | CS2400R-BK |
|---|---|
| Panel | |
| Type | IPS |
| Backlight | LED |
| Size | 24.1" (61.1 cm) |
| Native Resolution | 1920 x 1200 (16:10 aspect ratio) |
| Viewable Image Size (H x V) | 518.4 x 324.0 mm |
| Pixel Pitch (H x V) | 0.270 x 0.270 mm |
| Pixel Density | 94 ppi |
| Display Colors | 1.07 billion colors, 10-bit display (from a palette of 278 trillion, 16-bit LUT) |
| Viewing Angles (H / V, typical) | 178°, 178° |
| Brightness (typical) | 300 cd/m2 |
| Contrast Ratio (typical) | 1000:1 |
| Response Time (typical) | 14 ms (gray-to-gray) |
| Color Gamut (typical) | sRGB: 100% |
| Video Signals | |
| Input Terminals | USB Type-C (DisplayPort Alt Mode, HDCP 2.3), DisplayPort (HDCP 2.3), HDMI (Deep Color, HDCP 2.3) |
| Digital Scanning Frequency (H / V) | USB Type-C, DisplayPort: 26 - 76 kHz / 23 - 61 Hz HDMI: 15 - 76 kHz / 23 - 61 Hz |
| USB | |
| Upstream | USB 5Gbps: Type-C (DisplayPort Alt Mode, Power Delivery Source 70 W max.)), USB 5Gbps: Type-B |
| Downstream | USB 5Gbps: Type-A x 2 USB 2.0: Type-A x 2 |
| Power | |
| Power Input | AC 100 - 240 V, 50 / 60 Hz |
| Typical Power Consumption | 15 W |
| Maximum Power Consumption | 134 W |
| Power Save Mode | 0.30 W |
| Built-in Calibration Sensor | - |
| Features & Functions | |
| Brightness Stabilization | - |
| Digital Uniformity Equalizer | Yes |
| Preset Modes | User, sRGB, Calibration (CAL) |
| OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
| Others | Color Adjustment, Input Color Format, YUV Color Matrix, Input Range, I/P Conversion, Picture Expansion, Menu Rotation, Power Save, Input Skip, Mode Skip, Custom Key, Information Display, Key Lock, DUE Priority |
| Physical Specifications | |
| Dimensions (Landscape, W x H x D) | 554.4 x 396 - 551 x 245 mm |
| Dimensions (Without Stand, W x H x D) | 554.4 x 362 x 64 mm |
| Net Weight | 8.1 kg |
| Net Weight (Without Stand) | 5.1 kg |
| Height Adjustment Range | 155 mm |
| Tilt | 35° Up, 5° Down |
| Swivel | 344° |
| Pivot | 90° |
| Hole Spacing (VESA Standard) | 100 x 100 mm |
| Environmental Requirements | |
| Operating Temperature | 0 - 35°C |
| Operating Humidity (R.H., non condensing) | 20 - 80% |
| Certifications & Standards (Please contact EIZO for the latest information.) | CB, CE, UKCA, TUV/GS, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RCM, RoHS, WEEE, TUV/Ergonomics |
| Dedicated Software | |
| Easy Screen-to-Print Color Matching Tool Quick Color Match | Supported |
| Proprietary Software | |
| Color Management Software ColorNavigator 7 | Supported |
| Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
| Signal Cables | USB Type-C (2 m), HDMI (2 m) |
| Others | AC power cord, USB Type-A - USB Type-B cable (2 m), Setup guide, Factory Report, Warranty card |
| Warranty | 5 Years 2 5 Zero bright sub-pixels for six months from date of purchase for purchases made on September 1, 2015 or later. |
| Dimension Drawing |
