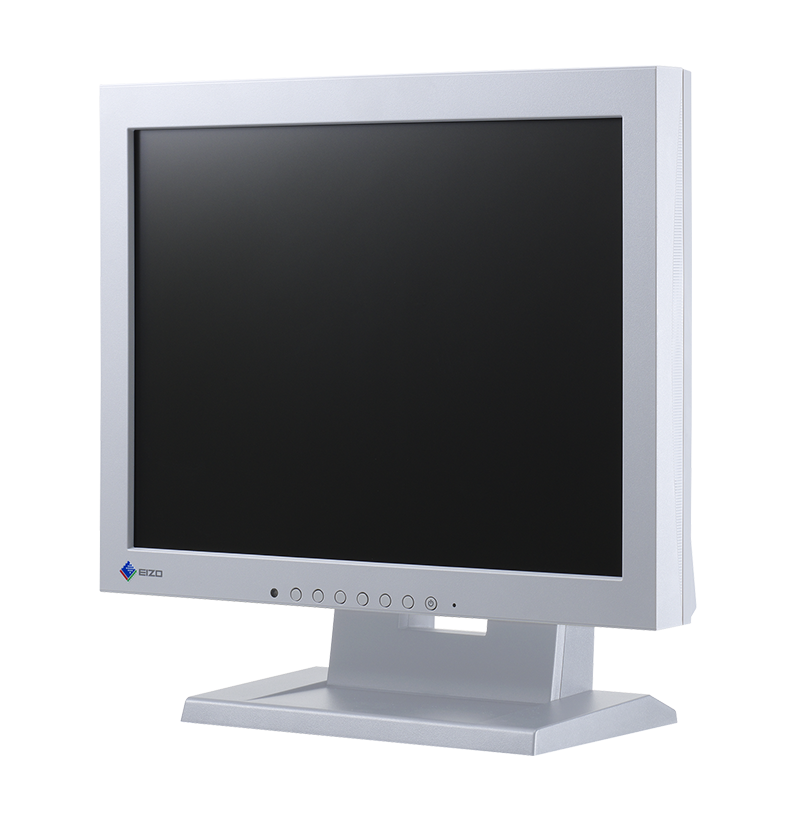

S1504
15.0" Color LCD Monitor
The S1504 is a 15-inch square monitor with 1024 x 768 resolution. With a 5-year warranty and long-term supply, it is the perfect choice for back offices and control rooms.





Our Contribution to SDGs
As part of its sustainability initiatives, EIZO is contributing towards the United Nations' Sustainable Development Goals (SDGs). | |
![]() |
Environmentally Conscious FlexScan are sustainable monitors made using recycled plastics and without using any paints. They are designed to promote energy efficiency for reduced power consumption and greenhouse gas emissions, and are supported by a responsible after-service recycling system. |
|
![]() ![]() ![]() |
|
|
|
Higher Work Efficiency FlexScan monitors implement numerous innovative technologies and software that aim to improve work efficiency and contribute to the reduction of eye fatigue. |
|
![]() |
Model Variations | S1504-TBK: with Tilt Stand, black S1504-TGY: with Tilt Stand, gray S1504-FBK: without stand, black S1504-FGY: without stand, gray Note: Tilt Stand is removable |
---|---|
Panel | |
Type | VA |
Backlight | LED |
Size | 15.0" (38.0 cm) |
Native Resolution | 1024 x 768 (4:3 aspect ratio) |
Viewable Image Size (H x V) | 304.1 x 228.1 mm |
Pixel Pitch (H x V) | 0.297 x 0.297 mm |
Pixel Density | 86 ppi |
Display Colors | 16.77 million |
Viewing Angles (H / V, typical) | 176° / 176° |
Brightness (typical) | 400 cd/m2 |
Contrast Ratio (typical) | 2500:1 |
Response Time (typical) | 23 ms (black-white-black) |
Color Gamut (typical) | sRGB |
Video Signals | |
Input Terminals | DVI-D, D-Sub mini 15 pin |
Digital Scanning Frequency (H / V) | 31 - 49 Hz / 59 - 61 Hz |
Analog Scanning Frequency (H / V) | 31 - 49 kHz / 55 - 61 kHz |
Sync Formats | Separate |
Audio | |
Speakers | 0.5 W + 0.5 W |
Input Terminals | Stereo mini jack |
Power | |
Power Input | AC 100 - 240 V, 50 / 60 Hz |
Typical Power Consumption | 5 W |
Maximum Power Consumption | 14 W |
Power Save Mode | 0.5 W or less |
Features & Functions | |
Preset Modes | User1, User2, sRGB, Paper |
Automatic Brightness Control | Auto EcoView |
OSD Languages | English, German, French, Italian, Japanese, Simplified Chinese, Spanish, Swedish, Traditional Chinese |
Physical Specifications | |
Dimensions (Landscape, W x H x D) | 346 x 349 x 157 mm |
Dimensions (Without Stand, W x H x D) | 346 x 280 x 69 mm |
Net Weight | 4.7 kg |
Net Weight (Without Stand) | 3.4 kg |
Tilt | 30° Up, 0° Down |
Hole Spacing (VESA Standard) | 100 x 100 mm, 75 x 75 mm |
Environmental Requirements | |
Operating Temperature | 5 - 35°C |
Operating Humidity (R.H., non condensing) | 20 - 80% |
Certifications & Standards (Please contact EIZO for the latest information.) | TUV/Ergonomics, TUV/GS, RCM, CE, UKCA, CB, cTUVus, FCC-B, CAN ICES-3 (B), TUV/S, PSE, VCCI-B, RoHS, WEEE, China RoHS, CCC |
Supplied Accessories (May vary by country. Please contact EIZO for details.) | |
Signal Cables | DVI-D (2 m) , D-Sub mini 15 pin (1.8 m) |
Others | AC power cord (2 m), audio cable (2.1 m), setup guide |
Warranty | 5 Years |
Dimension Drawing |
